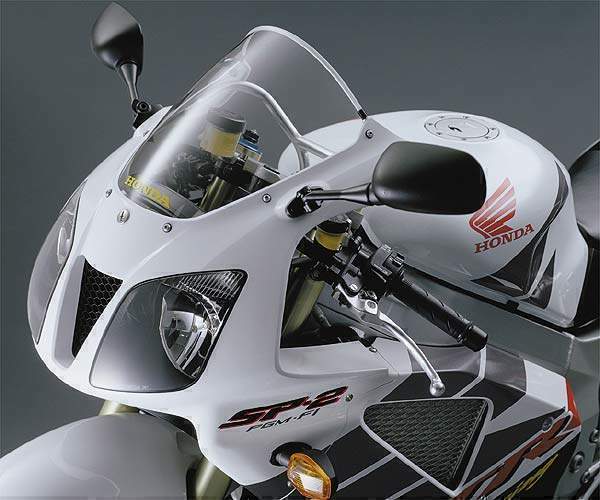

Make ModelHonda VTR 1000 RC51 SP2
Year: 2004
Engine: Liquid cooled, four stroke, 90°V-twin cylinder, DOHC, 4 valves per cylinder
Capacity: 996
Bore x Stroke: 100 x 63.6 mm
Compression Ratio: 10.8:1
Induction: Electronic fuel injection
Ignition / Starting: Computer-controlled digital transistorized / electric
Max Power: 136 hp 100 KW @ 9500 rpm
Max Torque: 10.7 kg-m 105 Nm @ 8000 rpm
Transmission / Drive: 6 Speed / chain
Front Suspension: 43mm inverted cartridge-type fork with adjustable spring preload, and compression and rebound damping, 130mm axle travel
Rear Suspension: Pro-Link with gas-charged integrated remote reservoir damper offering adjustable preload, and compression and rebound damping, 120mm axle travel
Front Brakes: 2x 320mm discs 4 piston calipers
Rear Brakes: Single 220mm disc 1 piston caliper
Front Tire: : 120/70 ZR17
Rear Tire: : 190/50 ZR17
Seat Height813 mm
Dry-Weight: 194kg
Fuel Capacity: 18 litres (2.5L)
Consumption average19.5 km/lit
Standing ¼ Mile 10.9 sec / 209 mp/h
Top Speed271.3 km/h
ReviewsMotorcyclist / Motorsport it / 2WF.com / Motormag / Motociclismo 1 – Motociclismo 2 / Motocorse / Motorcycle Daily / Visordown
Engine: /Drivetrain
· 999cc DOHC eight-valve 90-degree V-twin Engine: is specially designed to withstand the rigors of superbike competition.
· Centrally-mounted ram-air intake duct routes cool, pressurized air directly through the Frame: ‘s steering head structure to the 9.0-litre airbox, improving intake efficiency while slimming the aerodynamic profile. The ram-air duct doubles as a front cowl stay, shaving 0.34 kg. off of a conventional mounting system.
· Each cylinder head features large, 40mm intake and 34mm exhaust valves with a 24 degree included valve angle. This provides a short, direct path for the air/fuel charge entering the combustion chamber and results in high poweroutput.
· Gear-driven camshafts utilize three-axis drive gears to maintain accurate valve timing and durability at sustained high Engine: speeds.
· Innovative head gaskets minimize distortion caused by head bolt tightening, improving sealing performance and maintaining combustion pressure for consistent high poweroutput in competition conditions.
· Direct shim-under-bucket valve actuation system ensures high-rpm durability, and allows 25,600-km valve maintenance intervals.
· High-pressure programmed fuel injection (PGM-FI) delivers fuel at 50 psi to two injectors per cylinder, mounted opposite each other in huge 62mm throttle bodies. Fuel is delivered through 12 nozzle holes in each injector, producing a very fine spray and a highly combustible air/fuel charge for maximum combustion efficiency and poweroutput.
· Cast aluminum pistons are screen-printed with solid LUB-Coat finish to minimize friction between the piston and cylinder wall.
· Aluminum composite cylinder sleeves are high-pressure-formed from sintered aluminum powder impregnated with ceramic and graphite. The lightWeight: composite sleeves provide better wear resistance and superior heat dissipation compared to conventional sleeves.
· Nutless connecting rods feature bolts threaded directly into tapped holes in rods. Design is lighter than conventional bolt-and-nut combination. Carburized rods provide strength and durability under high loads.
· Crankshaft center lubrication system carries oil to main and connecting rod bearings through passages in the crankshaft as well as conventional journals, allowing lower main-gallery oil pressure and a smaller oil pump design, consuming less horsepower at high Engine: speeds.
· Electronic Control Unit (ECU) provides digital 3-D fuel injection and ignition maps for each cylinder, creating ideal fuel mixture and spark advance settings for maximum power and throttle response.
· Iridium-tip spark plugs require less voltage and maintain ignition performance in demanding conditions.
· At operating speed, side-mounted dual radiators utilize low pressure of airflow passing over outer surface of cowling to draw air through from the inside. Side positioning allows optimal placementof Engine: for a low center of gravity and superb handling and permits flow of air to reach cylinders and exhaust pipes for enhanced cooling efficiency.
· Aluminum water pump housing.
· Air-cooled aluminum oil cooler.
· Magnesium head cover, clutch cover and left-rear sprocket cover.
· All-stainless two-into-one-into-two exhaust system with two 5.3-litre canister-style mufflers with a buffed finish.
· Seven-plate clutch design is compact and tough, featuring durable friction plate material.
· Smooth-shifting close-ratio six-speed transmission features ratios carefully matched to the Engine: ‘s powerband.
Chassis/Suspension
· Twin-spar extruded aluminum Frame: features a modified Pro Frame: (r) design utilizing a swingarm pivot that incorporates both Engine: -crankcase- and Frame: -mounted pivot points. The Frame: sideplates extend underneath the swingarm and join to form a D-shape swingarm mounting enclosure. This combination provides an extremely rigid chassis whileoffering excellent road feel.
· Tapered and braced box-section swingarm provides exceptional lateral and torsional rigidity.
· 43mm inverted aluminum-slider Honda Multi-Action System(tm) (HMAS(tm)) cartridge fork with 130mm of travel features spring preload, rebound and compression damping adjustability, and offers precise action and superb rigidity.
· Pro-Link(r) Rear Suspension: features 120mm of travel and a high-quality 40mm HMAS shock with integrally cast damper reservoir. Spring preload, rebound and compression damping adjustability produces superior rear wheel control.
· Braking system features 320mm front discs floating on seven stainless steel pins with four-piston calipers, and a 220mm rear disc with a single-piston caliper for exceptional stopping power.
