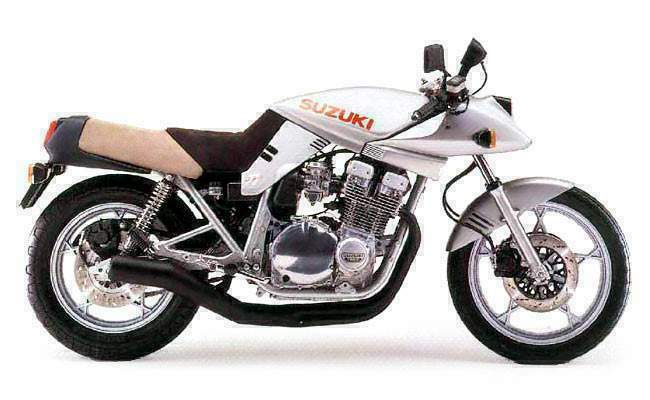

Suzuki GSX 1100SX Katana Prototype

Read more about this motorcycle. Specification, detail, pictures and video. Please comments and give rating, tell others about it. Feel free to look around, we open 24 hours a day.

Make ModelSuzuki GSX 1100SX Katana Prototype
Year: 1980
Engine: Air cooled, four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Capacity: 1074
Bore x Stroke: 72 x 66 mm
Compression Ratio: 9:5:1
Induction: 4x 34mm Mikuni CV
Ignition / Starting: Magnetically triggered / electric
Max Power: 101 hp @ 8500 rpm
Max Torque: 9.34 kg-m @ 6500 rpm
Transmission / Drive: 5 Speed / chain
Front Suspension: Telescopic, oil damped, spring 4-way adjustable with anti-dive
Rear Suspension: Dual shock oil damped, damper 4-way spring 5-way adjustable
Front Brakes: 2x 275mm discs 2 piston calipers
Rear Brakes: Single 275mm disc 1 piston caliper
Front Tire: : 3.50 V19
Rear Tire: : 4.50 V17
Dry-Weight: 243 kg
Fuel Capacity: 22 Litres
