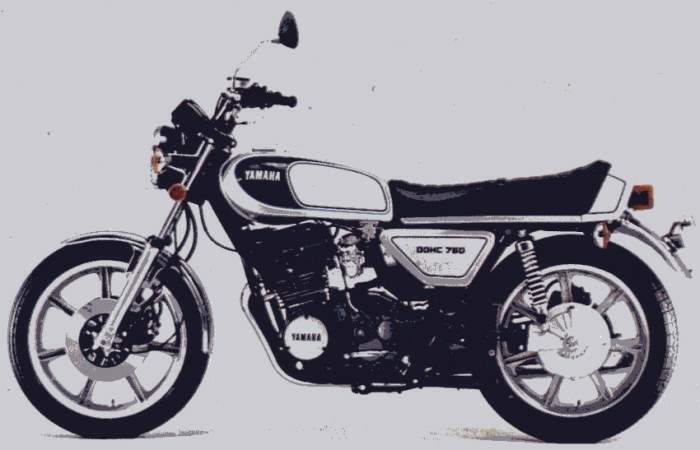

Make ModelYamaha XS 750
Year: 1976
Engine: Air cooled, four stroke, transverse three cylinder, DOHC, 2 valves per cylinder.
Capacity: 747
Bore x Stroke: 68 ? 68.6 mm
Compression Ratio: 8.5:1
Induction: 3x 34mm Mikuni carbs
Ignition / Starting: Electronic TCI / electric
Max Power: 64 hp @ 7500 rpm
Max Torque:
Transmission / Drive: 5 Speed / shaft
Front Suspension: Telescopic forks
Rear Suspension: Dual shocks swing arm, preload adjustable
Front Brakes: 2x 267mm discs
Rear Brakes: Single 267mm disc
Front Tire: : 3.25-19
Rear Tire: : 4.00-18
Dry-Weight: 331 kg
Fuel Capacity: 15 Litres
Consumption average42.9 mp/g
Braking 60 – 0 / 100 – 0- / 138 ft
Standing ΒΌ Mile 14.1 sec / 91.1 mp/h
Top Speed106 mp/g
