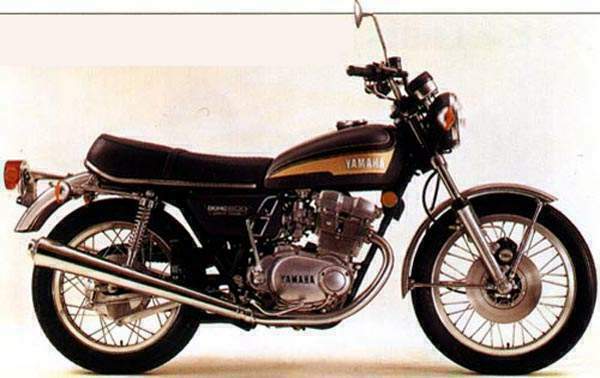

Make ModelYamaha TX 500 Sport
Year: 1973
Engine: Air cooled, four stole, two cylinder. DOHC
Capacity: 398
Bore x Stroke: 73 ? 59.6 mm
Compression Ratio: 9:1
Induction: 2x 38mm Mikuni
Ignition / Starting: Battery and coil /
Max Power: 48 hp @ 8500 rpm
Max Torque: 4.5 kg-m @ 6500 rpm
Transmission / Drive: 5 Speed / chain
Frame: Full cradle Frame: – Duplex type” and is 100% of circular steel pipes!
Front Suspension: Telescopic fork.
Rear Suspension: Dual shocks swing arm, preload adjustable!
Front Brakes: Single Disc
Rear Brakes: Drum
Front Tire: : 3.25-19
Rear Tire: : 3.50-18
Dry-Weight:
Fuel Capacity:
The third model of Yamaha’s 4-stroke road sports category, this racy Super Sports model was, very different from its predecessors, the 650 and 750, being the first road bike to have a DOHC 4-valve per cylinder high output Engine: . Functions such as the world?s first IC regulator, a CV carburetor, an full cradle Frame: – Duplex type” and is 100% of
circular steel pipes! Frame: and front disc brakes were also featured on this model.
