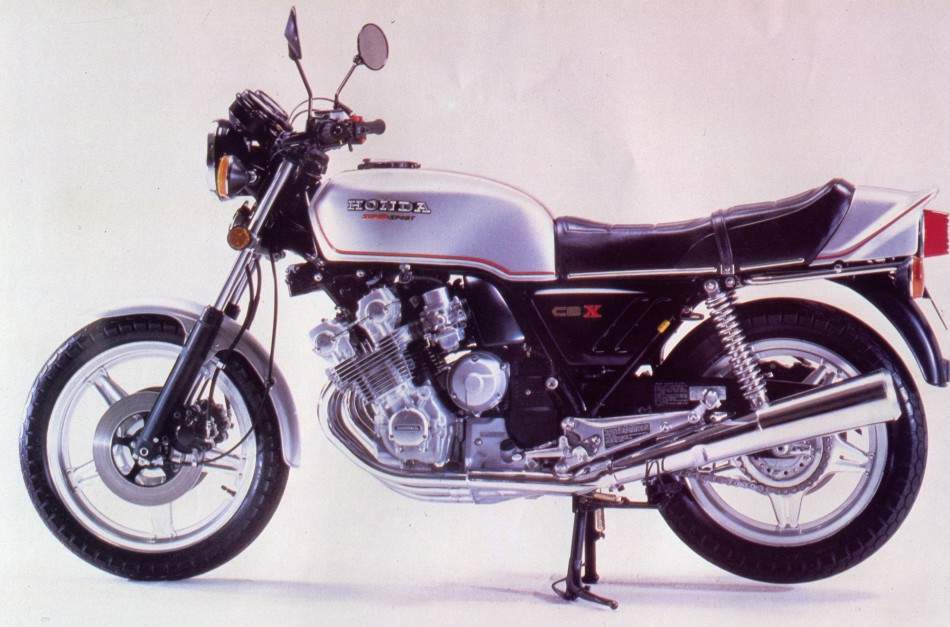

Make ModelHonda CBX 1000 Pre Production
Year: 1977
Engine: Air cooled, four stroke, transverse six cylinder. DOHC, 4 valves per cylinder
Capacity: 1047
Bore x Stroke: 64.5 x 53.4 mm
Compression Ratio: 9.3:1
Induction: 6x 28mm Keihin carbs.
Ignition / Starting: Electronic / electric
ClutchWet plate clutch
Max Power: 98 hp @ 9000 rpm (85 hp @ 9000 rpm)
Max Torque: 52.27 lbs/ft @ 6500 rpm
Transmission / Drive: 5 Speed / chain
Gear Ratio1st 12.90 2nd 9.26 3rd 7.35 4th 6.35 5th 5.49
Front Suspension: Air assisted fork. 160mm travel
Rear Suspension: Adjustable dual damping swing arm 100mm travel
Front Brakes: 2x 276mm discs
Rear Brakes: Single 296mm disc
Front Tire: : 3.50 V19
Rear Tire: : 4.25 V18
Dry-Weight: 247 kg
Fuel Capacity: 20 Litres
