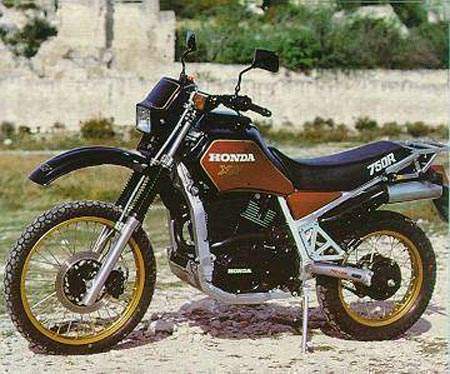

Honda XLV 750

Read more about this motorcycle. Specification, detail, pictures and video. Please comments and give rating, tell others about it. Feel free to look around, we open 24 hours a day.

Make ModelHonda XLV 750
Year: 1985
Engine: Air/oil cooled, four stoke, 45°V-four cylinders, SOHC. 3 valves per cylinder:
Capacity: 749
Bore x Stroke: 79.5 x 75.5 mm
Compression Ratio: 8.4:1
Induction: 2x Keihin VD Throttle bore 36 mm
Ignition / Starting: CDI / electric
Max Power: 61 hp 45 KW @ 7000 rpm
Max Torque: 7 kg-m 68.4 Nm @ 5500 rpm
Transmission / Drive: 5 Speed / shaft
Gear Ratio1st 2.500:1 (40116) 2nd 1.750:1 (35120) 3rd 1.291:1 (31124) 4th 1.000:1 (28128) 5th 0.833:1 (25130
ClutchWet, multi-plate
Frame: Double cradle
Front Suspension: Telescopic forks, 200mm wheel travel.
Rear Suspension: Air assisted Pro-Link, 180mm wheel travel
Front Brakes: Single 276mm disc 2 piston caliper
Rear Brakes: Drum
Front Tire: : 90/90 21
Rear Tire: : 130/80 17
Seat Hieght855 mm
Dry-Weight: / Wet-Weight: 195 kg / 212 kg
Fuel Capacity: 19.5 Litres
Top Speed165-170 km/h
ReviewsXLV owners / 1985 Honda XLV750R Test Report
ManualsHonda XLV750R Tech Tips / .revoyet.free / zoic.org / ourwinds.ch / xs4all.nl

Source Which Bike 1984
